We are excited to announce a collaboration effort with AceCraft.Pro to produce high quality sand and offroad cars! After 6 months of re-design (of a 26year old proven chassis) using the latest CAD software, we are now in production of these CNC cut and bent vehicles. Countless hours have been spent developing a package of components that are "standard stocking" items available from vendors such as Kartek, Mckenzies and Race Ready. If you choose to purchase a chassis and arm package, you will be given a spreadsheet with part number/description for every part on this car. This allows those who are "home builders" to assemble/build/prep this car easily with readily available parts without needing maching or long special orders.
MidnightAce R2
STANDARD PACKAGE / SPECS
Chassis
- CAD Designed / CNC cut & bent - (powedercoated)
Dimensions
- 13' 6” total length - 85 Front track width (sand tire package) - 93” Rear Track width (paddles)
- 120” Wheelbase - approx 2950lbs Weight w/NA LS & S4
Transmission / Axles
- Weddle S4 – 934 CV w/4130 cage - 33 Spline axles
Front Suspension
-MA 4130 Arms 20” travel (powedercoated) , 1” uniballs (outer) ¾” rod ends inner - Kartek 2” welded snout spindle upright - Fox 2.5 IBP Shocks - MA limit straps -Fortin 2.5 Steering Rack
Rear Suspension
- MA 29.25” 4130 arms 20” travel (powedercoated) - Fox 2.0 coil w/ 2.5 3-Tube Piggyback Bypass - Fox 2.0 bump stops - MA limit Straps
Brakes
- MA 2” front hubs (black Anno) 2 pison billet caliper – MA Mid-Board (934) 4 piston calipers - Wilwood pedal assembly (clutch and dual brake masters) - Jamar Billet Throttle pedal (black anno) - Wilwood turning brakes - Wilwood Clutch Slave – Stainless hardlines and braided flex
Tires /wheels
- STU front razor – STU SB36 paddle – Douglas 17" Beadlock wheels (4)
Plumbing
MA custom made, black Anno and cloth hoses throughout. PTFE cloth hoses for fuel system
Electronics
- Holley 6.86 Prodash/ Switchpro 8 button keypad - FT560 battery / battery switch - PCI radio/intercom package - Solid State relay for fans - Race inspired wiring harness using high quality wire with DTM, DT, DTP connectors in fire retardant loom.
Lighting
- Baja Designs XL80 (2) - Baja Deisgns 10” amber bar - LED interior dome lights (2)
Seats / Belts / Steering wheel

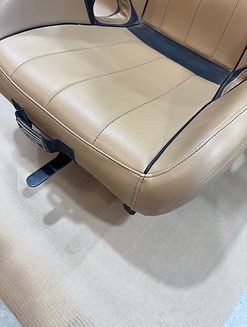

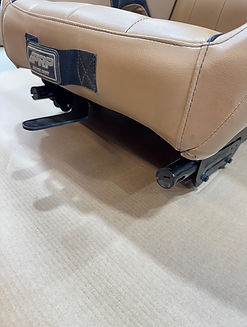

- MA seat sliders (both front) - PRP competition Elite seats - PRP Latch link belts (5 point) - PRP Suede steering wheel with PTT button – Splined Quick Release wheel
Body
-
Full aluminum body with radius windshield (powedercoated) - Aluminum dash with glove box (powedercoated) – 3D bezels – Vinyl on inside of side panels and roof
Fuel System
- MA 30 Gal Aluminum tank w/roll over valve – 400LPH/ 600whp (e85) pump – Fuel Sender
NOT INCLUDED:
Engine, Holly Computer / harness, Power Steering Pump, water pump, Alternator, Air Filter, Exhaust
**Some Available Upgrades**
Performance:
*Billet 4P Front brake caliper * Front Fox 2.5 / 3.0 Bypass shocks * MA boxed 4130 lower arms * Rear 6 piston billet calipers * Front Fox 2.5 / 3.0 Bypass. Rear Fox 3.0 / 3.5 Bypass shocks * 1500HP Fuel system / Pump * Transmission * 35 Spline axles/CV's * Tire and wheels
Electronics:
* Holley 12" pro dash * AIM PDM32 / AIM 10” dash / backup camera / Full sensor package * BT / Trax Intercom/headsets * GPS
Customization:
* Multiple seat options * Interior panel/upholstery * Upholstered dash * 2-Stage Powdercoat * Chrome options
* Graphics
Engine packages available 500 - 1500HP
